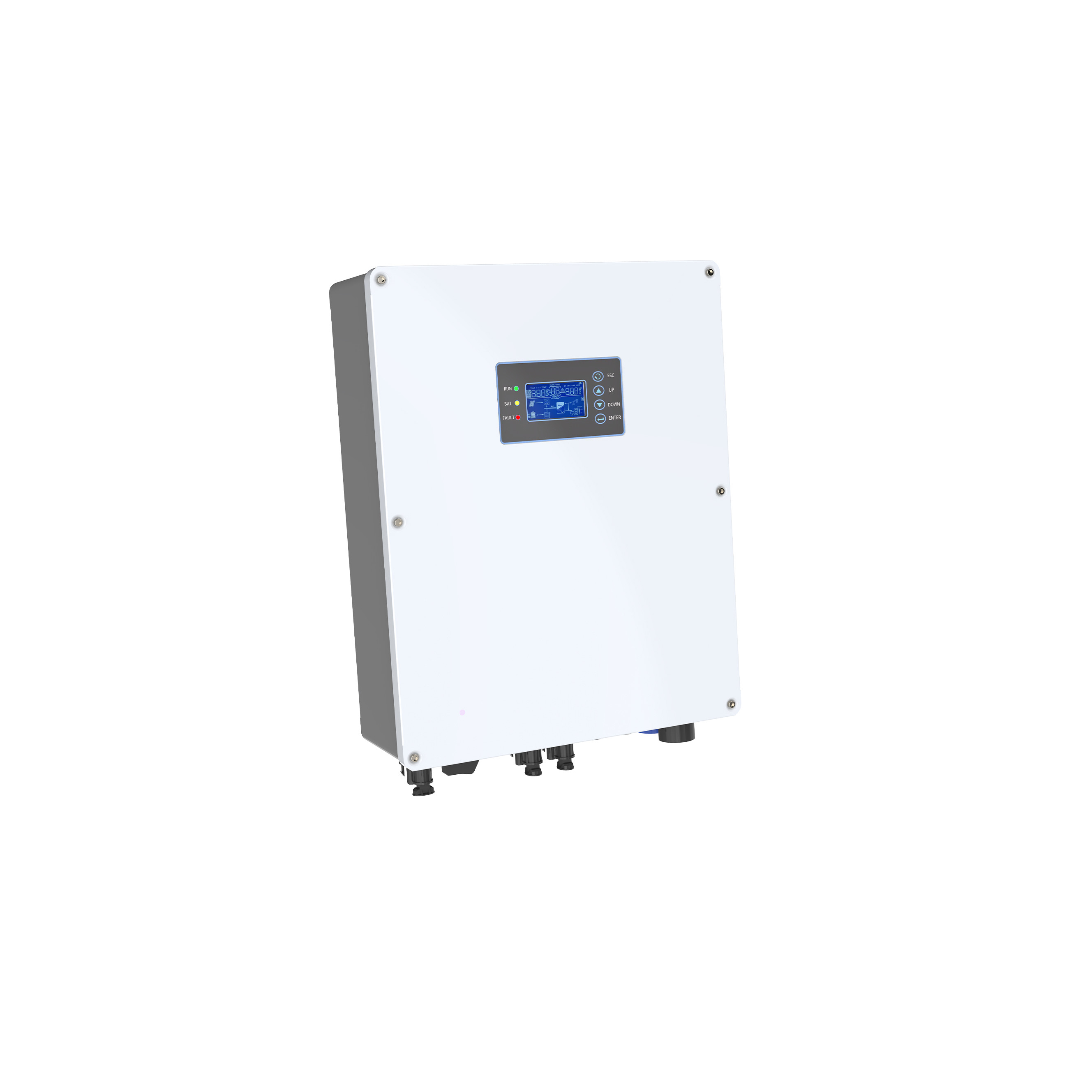

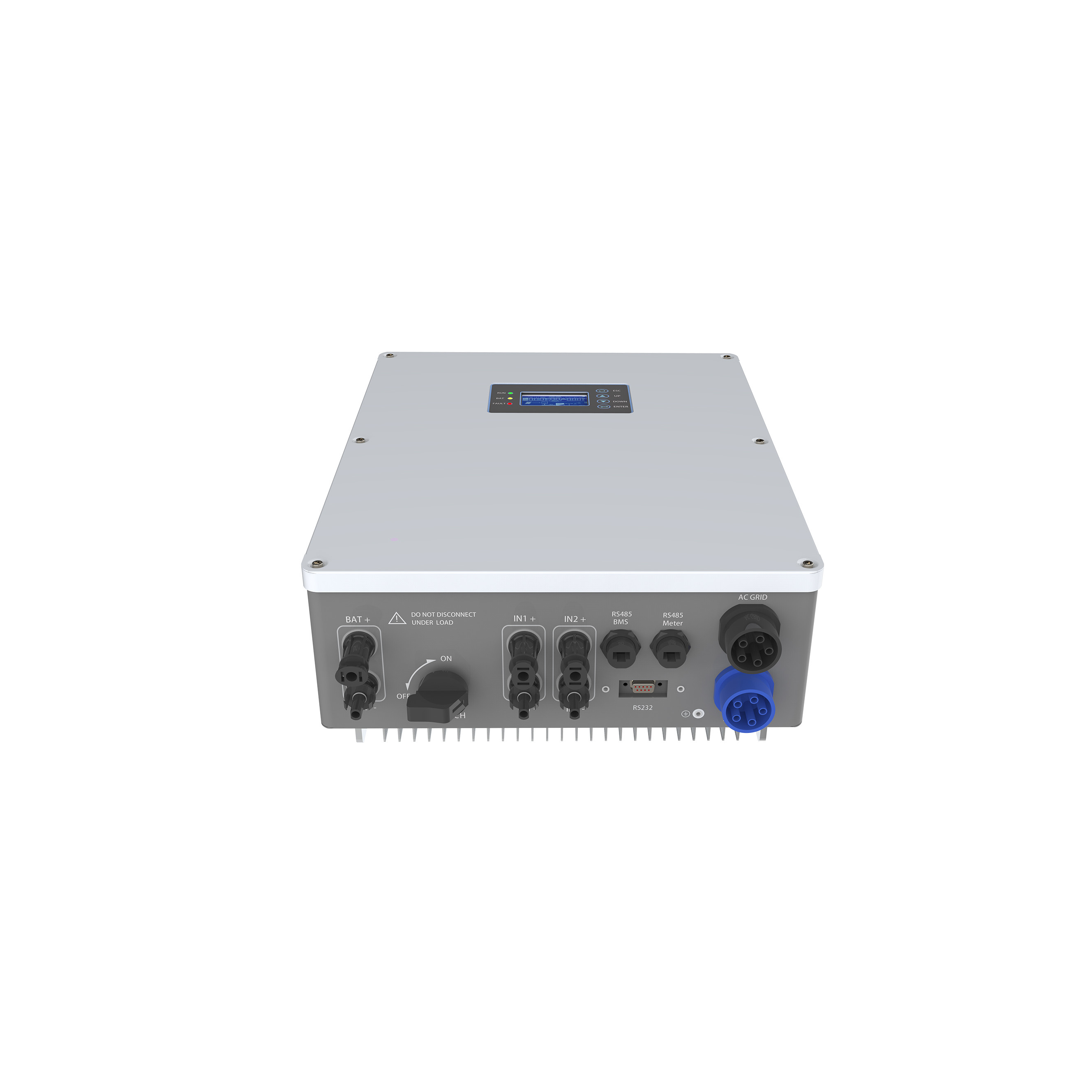

Three-phase 12KW On/Off-grid Hybrid Solar inverter
| MODEL | SolarMax 6K | SolarMax 8K | SolarMax 10K | SolarMax 12K |
| PV Array | ||||
| Max.PV Array Power | 7000W | 10000W | 12000W | 15000W |
| Max.PV Array Open-Circuit Voltage | 900V | 1000V | ||
| Start-up Voltage | 180V | |||
| MPPT Operating Voltage Range | 200-800V | |||
| Nominal Input Voltage | 620V | |||
| Max. Input Current MPPT | 20A | |||
| Max. Short Circuit Current MPPT | 22A | |||
| Number of MPPT | 1 | 2 | 2 | 2 |
| Number of inputs | 1 | 2 | 2 | 2 |
| Battery | ||||
| Battery Type | lead-acid /Li-ion | |||
| Nominal Battery Voltage(V) | 280V | 330V | ||
| Battery Voltage Range(V) | 180-600V | |||
| Max. Charging Current | 30A | |||
| Max. Discharge Current(A) | 30A | |||
| On-grid Operation | ||||
| Rated Outout power | 6000W | 80000W | 10000W | 12000W |
| Max. AC Current Output to Utility Grid | 9.7A | 13.6A | 16.5A | 18.3A |
| Nominal Output Voltage | 400/380Vac,3L/N/PE | |||
| Nominal AC Grid Frequency | 50/60Hz | |||
| Power Factor | ~1(Adjustable from 0.8 leading to 0.8 lagging) | |||
| Max. Total Harmonic Distortion | < 3% | |||
| Off-grid Operation | ||||
| Nominal Apparent Power | 6000VA | 8000VA | 10000VA | 120000VA |
| Max. Output Apparent Power | 6600VA | 8800VA | 11000VA | 13200VA |
| Nominal Output Voltage | 400/380Vac,3L/N | |||
| Max. AC Current Output to Utility Grid | 9.1A | 12.1A | 15.2A | 18.2A |
| Nominal Output Fregency | 50/60Hz | |||
| Transfer Time | < 10ms | |||
| Efficiency | ||||
| Max. PV to AC Efficiency | 97.60% | 97.60% | 97.60% | 97.60% |
| Max. Battery to AC Efficiency | 95.50% | 95.50% | 95.50% | 95.50% |
| Protection | ||||
| PV Insulation Resistance Detection | Yes | |||
| Residual Current Monitoring | Yes | |||
| Anti-islanding Protection | Yes | |||
| Zero-export Control | Yes | |||
| General Data | ||||
| Operating Temperature Range | -30℃~+60℃ | |||
| Relative Humidity | 0∽95% | |||
| Max. Operating Altitude | <4000m | |||
| Cooling Method | Intelligent Fan cooling | |||
| Display | LED + LCD | |||
| Communication with BMS | RS485 | |||
| Communication with Cloud | WiFi/4G | |||
| Degree of Protection | IP65 | |||
| Weight(kg) | 21 | |||
| Dimension(W*H*Dmm) | 450*355*183mm | |||
| Mounting Method | Wall Mounted | |||
