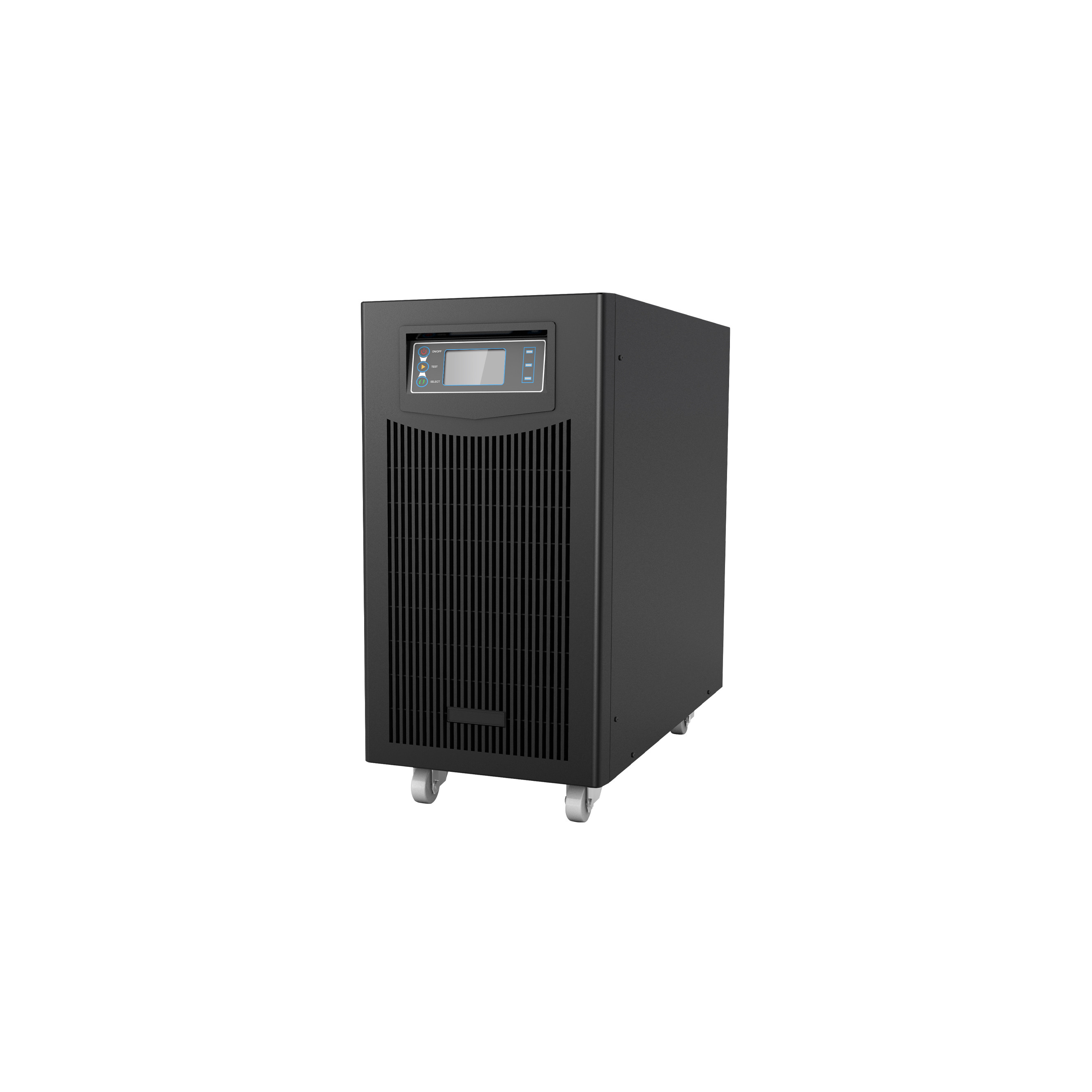

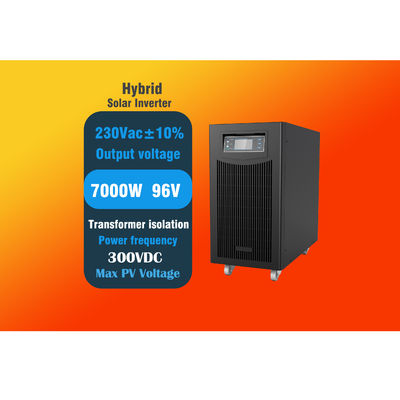

XPI 7K Hybrid Solar Inverter with 7KW Transformer Isolation
| MODEL | XPI 3K-WL | XPI 3K | XPI 5K | XPI 7K | XPI 10K |
| PV Array | |||||
| Max.PV Array Power | 3300W | 5500W | 8000W | ||
| Max.PV Array Open-Circuit Voltage | 250VDC | 300VDC | |||
| Start-up Voltage | 70VDC | 130VDC | |||
| MPPT Operating Voltage Range | 80-230VDC | 140-280VDC | |||
| Nominal Input Voltage | 150VDC | 200VDC | |||
| Max. Input Current MPPT | 18A | 30A | 36A | ||
| Max. Short Circuit Current MPPT | 20A | 33A | 40A | ||
| Number of MPPT | 1 | 1 | 1 | ||
| Battery | |||||
| Battery Type | lead-acid /Li-ion | ||||
| Nominal Battery Voltage | 48V | 96V | |||
| Battery Voltage Range | 41-58V | 80-116V | |||
| Max. AC Charging Current | 20A | 20A | |||
| Max. PV Charging Current | 60A | 50A | 75A | ||
| Max. Continuous Charging Current | 60A | 50A | 80A | ||
| Max. Charge Power | 3000W | 5000W | 8000W | ||
| Max. Discharge Power | 3000W | 5000W | 7000W | 9000W | |
| AC Input | |||||
| Nominal Voltage | 230VAC | ||||
| Voltage Range | 170-275VAC | ||||
| Frequency | 50/60Hz(Auto sensing) | ||||
| Max. Input Current | 22A | 36A | 50A | 65A | |
| AC Output | |||||
| Nominal Voltage | 220/230VAC±5% | ||||
| Output Voltage Waveform | Pure Sine Wave | ||||
| Rated Output Power | 3000VA/3000W | 5000VA/5000W | 7000VA/7000W | 10000VA/10000W | |
| Peak Output Power | 5100VA | 7000VA | 8000VA | 10000VA | |
| Nominal Output Fregency | 50/60Hz | ||||
| Transfer Time | < 10ms | ||||
| Max. Battery to AC Efficiency | 90.0% | ||||
| Protection | |||||
| AC Overcurrent/Overvoltage Protection | Yes | ||||
| Surge Protection | Ⅱ | ||||
| General Data | |||||
| Operating Temperature Range | -10 -- +50℃ | ||||
| Relative Humidity | 0∽95% | ||||
| Max. Operating Altitude | < 4000m | ||||
| Cooling Method | Intelligent Fan cooling | ||||
| Display | LED + LCD | ||||
| Communication with BMS | RS485 | ||||
| Communication with Cloud | WiFi/4G | ||||
| Degree of Protection | IP20 | ||||
| Weight(kg) | 18 | 22 | 40 | 54 | 60 |
| Dimension(W*H*Dmm) | 465*310*135 | 500*195*345 | 500*240*490 | 500*240*490 | 5800*260*620 |
| Mounting Method | Wall Mounted | TOWER | |||
