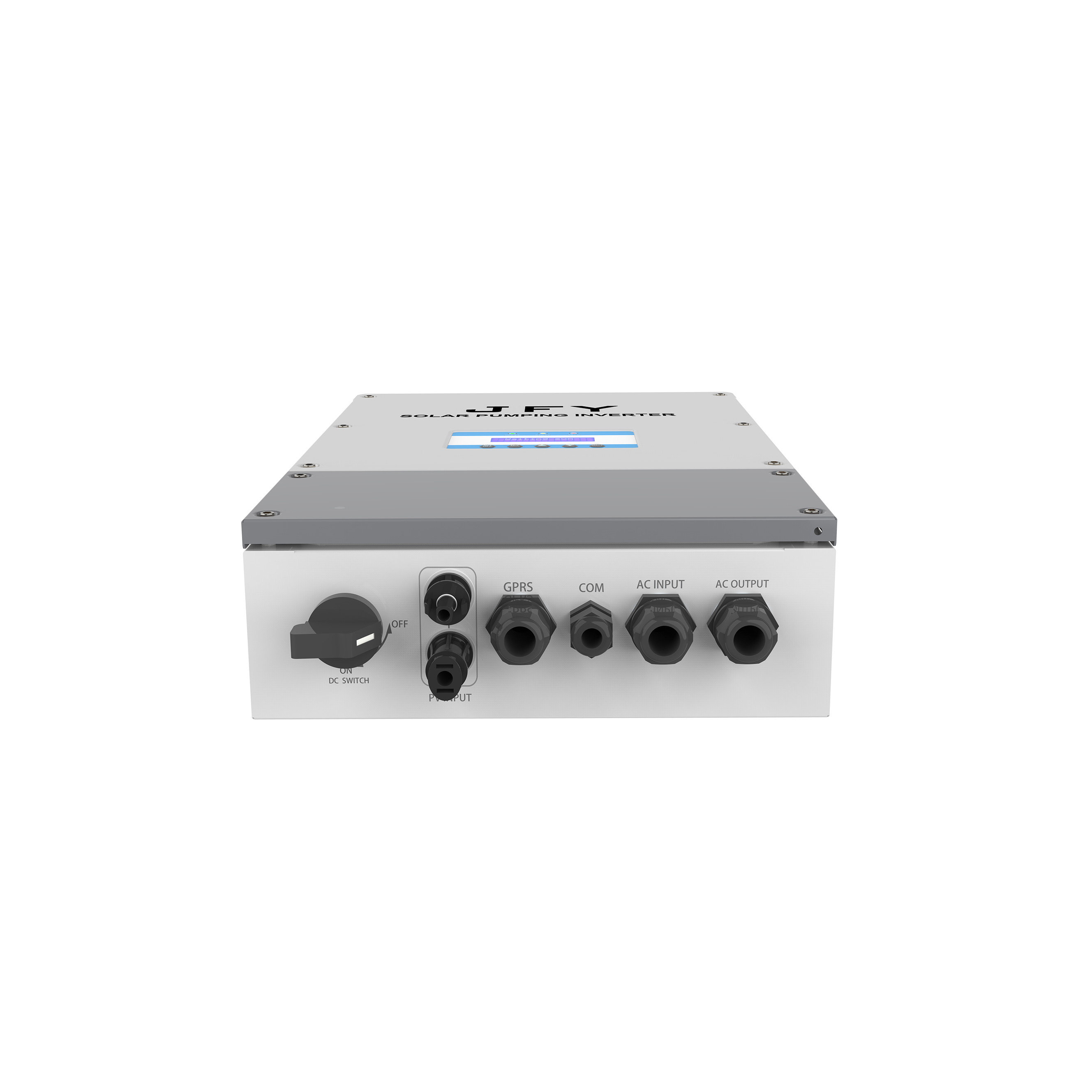

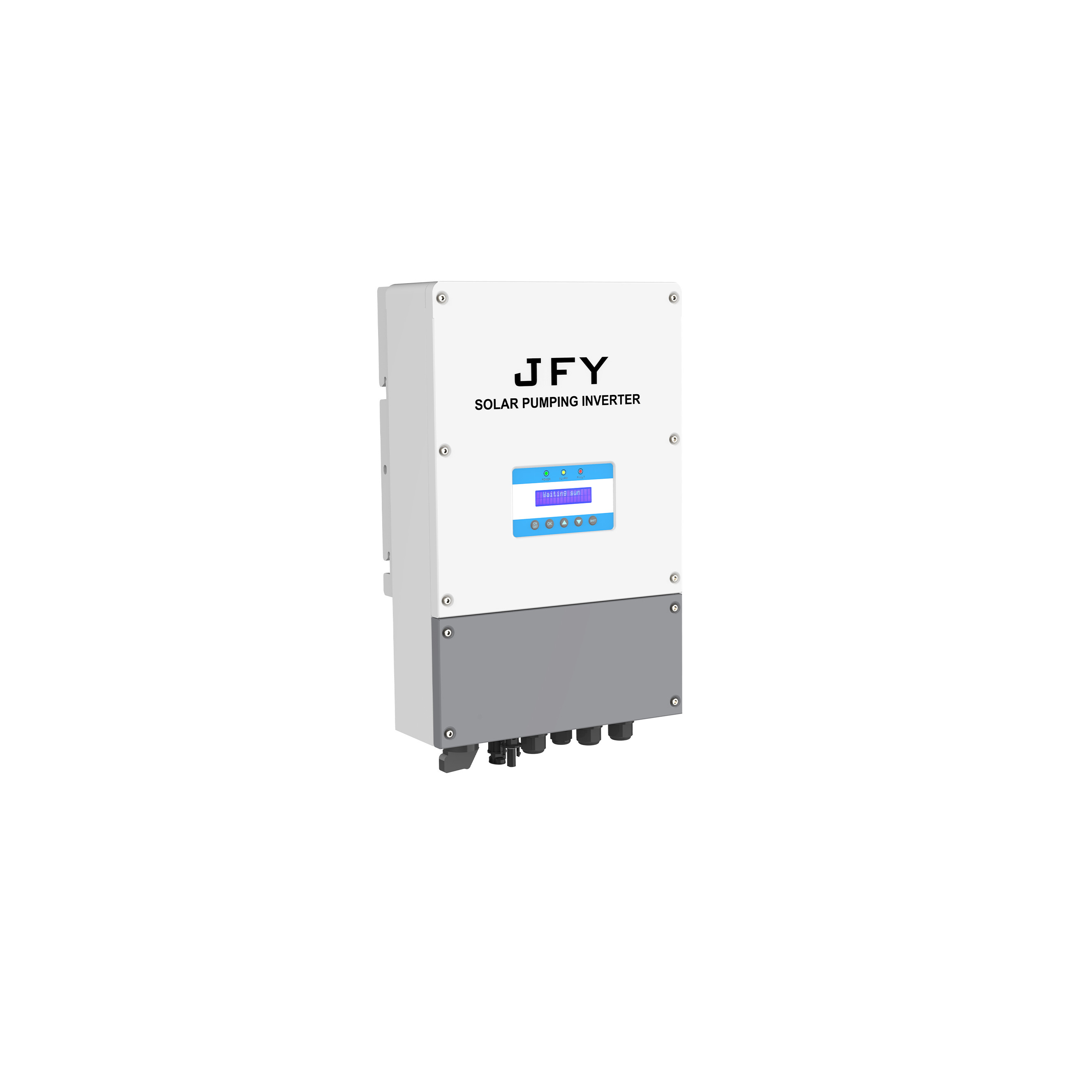

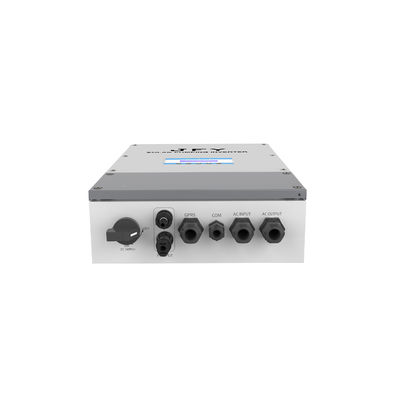

Solar Pumping Inverter SPRING 2200-SLA
SPRING Series 1.1kw-2.2kW
Solar Pumping Inverter
Features

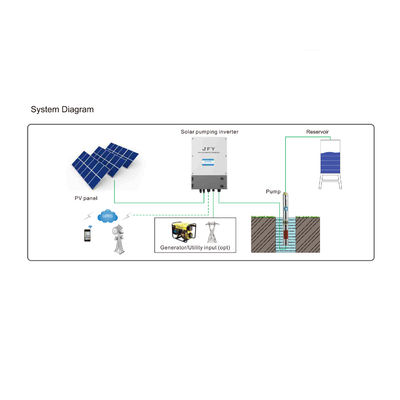

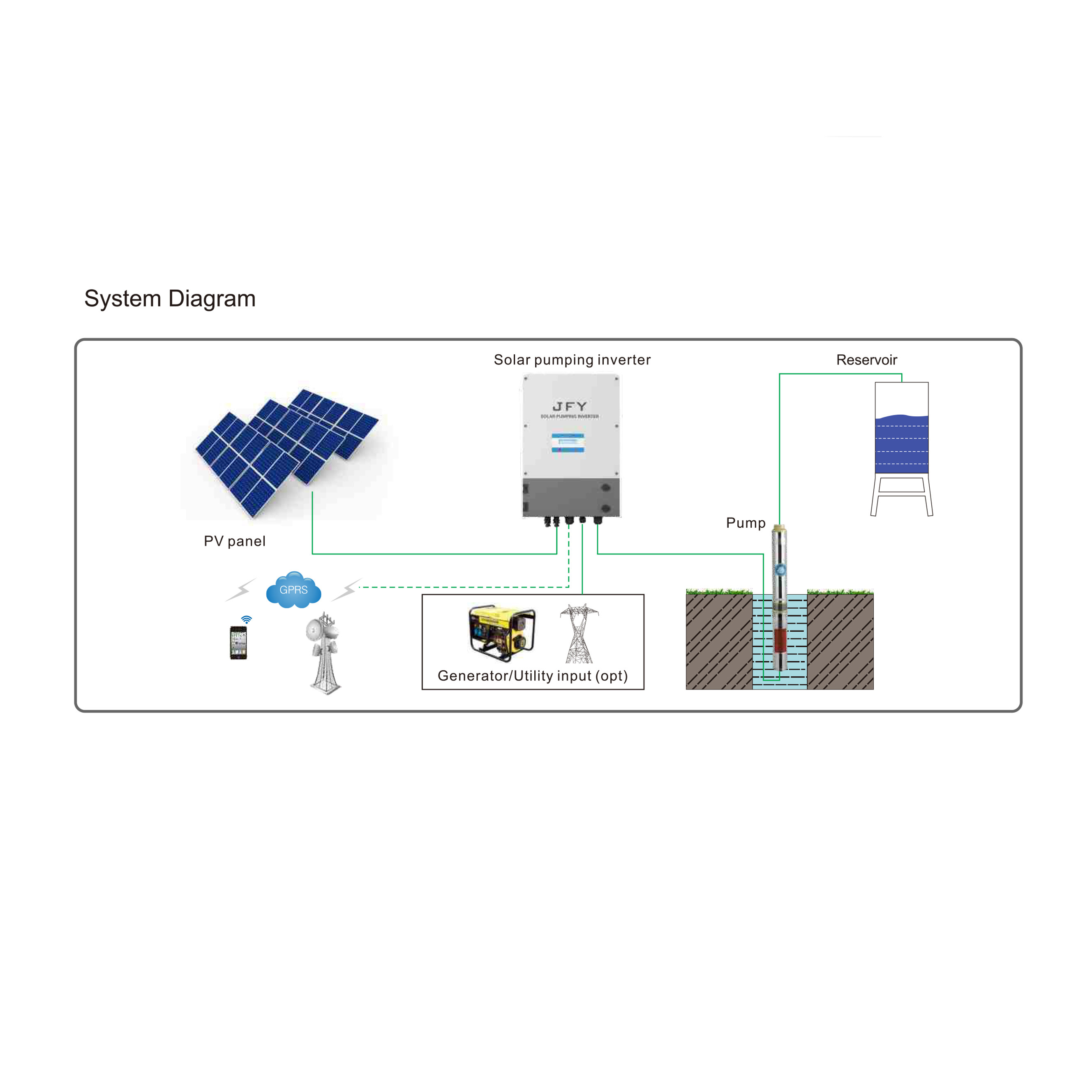

> Support electric supply/generator input, Strong environmental adaptability
> Compact design, wall mounted installation
> Various communication ports, RS485/CAN/GPRS (Opt)
> Perfect protection function, prevent dry pumping and spillage
> Advanced MPPT optimized design, fast response and high reliability
> Fully automatic intelligent operation, great overload capability, safe and stable
> IP65 protection grade, integrate with combiner box and distribution unit
> LCD screen design, user-friendly interface
| MODEL | SPRING 1100-SLA | SPRING 1500-SLA | SPRING 2200-SLA |
| PV Input | |||
| MPP Trackers | 1 | ||
| Max. input strings | 1 | ||
| Start voltage (Vdc) | 80 | ||
| Max. input current (A) | 9 | 11 | |
| Max. input voltage (Vdc) | 450 | ||
| MPPT voltage range (Vdc) | 150-360 | 200-400 | 270-400 |
| AC Input | |||
| Input voltage range (Vac) | 220±15% | ||
| Input frequency range (Hz) | 50/60±5 | ||
| AC Output | |||
| Rated output power (W) | 1100 | 1500 | 2200 |
| Rated voltage (^c) | 220 | ||
| Output voltage range (Vac) | 0-240 | ||
| Output frequency (Hz) | 0-50/60 | ||
| Max. output current (A) | 8.6 | 10 | 14 |
| General Data | |||
| Display | LCD | ||
| Communication port | RS485/CAN/GPRS | ||
| Protection grade | IP65 | ||
| Operating altitude (m) | <6000 (>3000 derating) | ||
| Cooling concept | Natural cooling | ||
| Operating tempeture range (°C) | -25-+60 | ||
| Dimension (D*W*H mm) | 418*288*152 | 453*288*152 | |
| Weight (kg) | 7 | 8.5 | |
