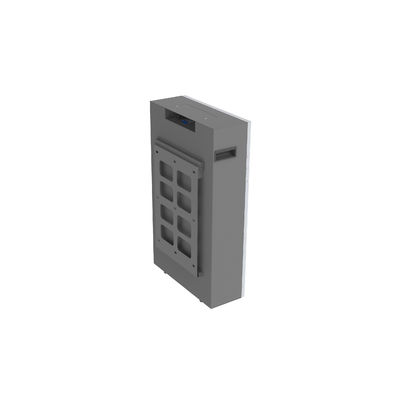

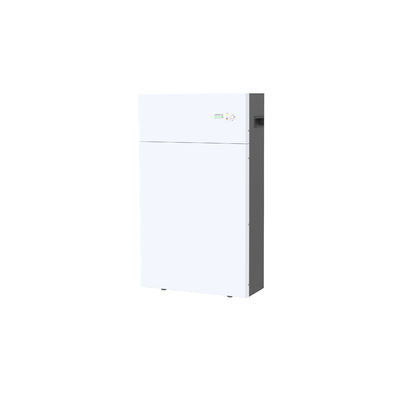

High voltage energy storage battery pack With 230V
BPM Series 200-300V
| Model | BPM 11.5 | BPM 12.6 | BPM 14.0 | BPM 15.4 |
| Perormance | ||||
| Cell technology | LFP (LiFePO4) | |||
| Cell Nomina energy | 50AH | 55AH | 50AH | 55AH |
| Batter usable energy | 11.52 kWh | 12.67 kWh | 14.08kWh | 15.48kWh |
| Nominal voltage | 230V | 282V | ||
| Operating voltage | 190-260V | 233-316V | ||
| Nominal output current | 50A/25A | 55A/25A | 50A/25A | 55A/25A |
| BMS protection current | 55A,1S | 60A,1S | 55A,1S | 60A,1S |
| Communication | ||||
| Display | SOC status indicator, LED indicator, LCD display status(Optional) | |||
| Communication | CAN / RS485 / RS232 | |||
| General Specifcation | ||||
| Dimension (W*D*H) | 480×185×800mm | 600×185×800mm | ||
| Weight | 86kg | 116 kg | ||
| Installation | Floor stand or Wall mounted | |||
| Operating temperature | -20 to 60 °C (-4 to 140 °F) | |||
| Environmental humidity | ≤ 95%RH (No condensation) | |||
| Protection rating | IP 21 | |||
| Cycle life | 6000 Cycles @ 80% DOD / 25℃/0.5C | |||
| Application | ON Grid / ON Grid + Backup / Off Grid / UPS | |||
| Standard Compliance | ||||
| Cerifcates | Cell: UN38.3 / IEC62619 / UL 1642 / JET | |||
| Batter pack: UN38.3 / IEC62619 / IEC61000 / UKCA (More available upon request) | ||||
