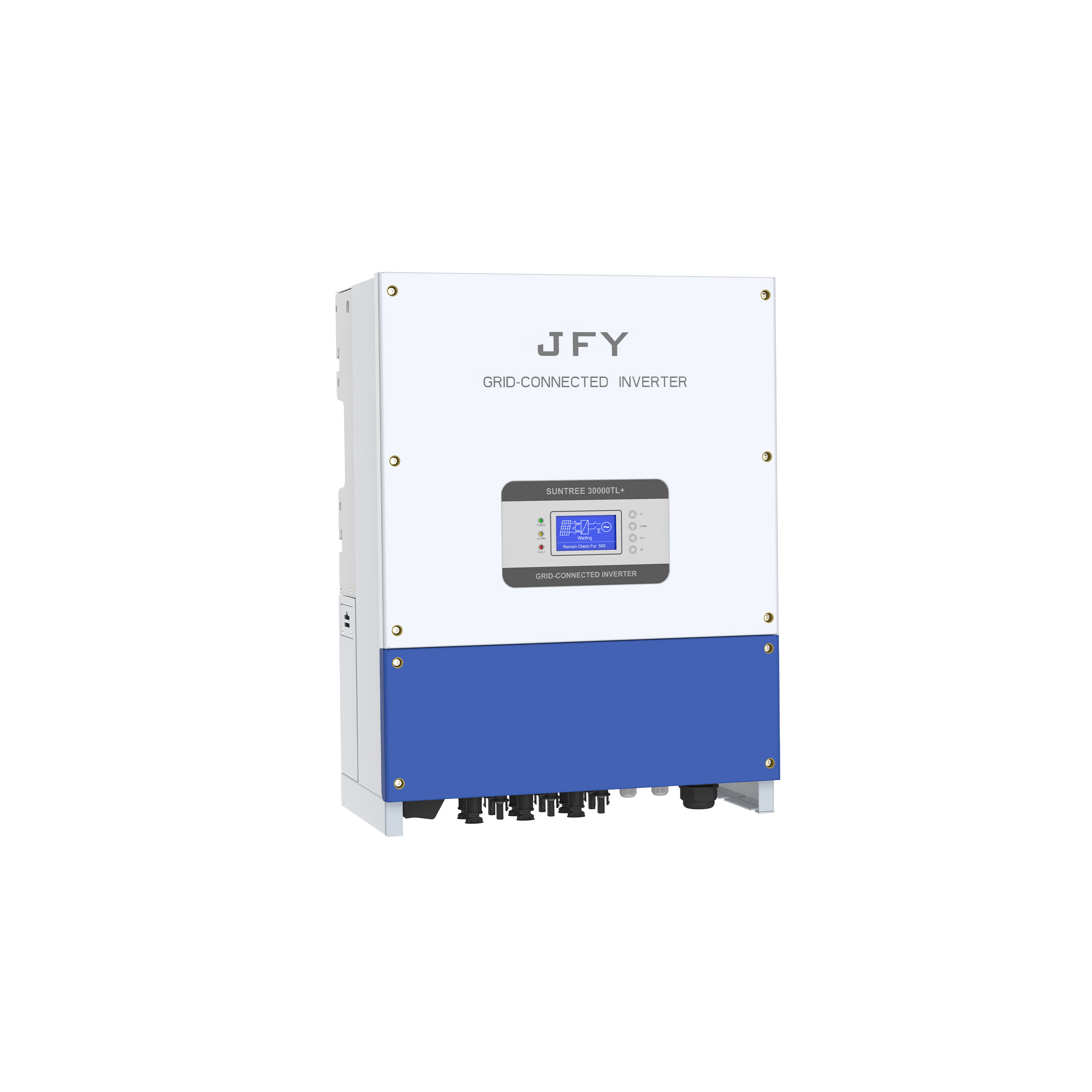

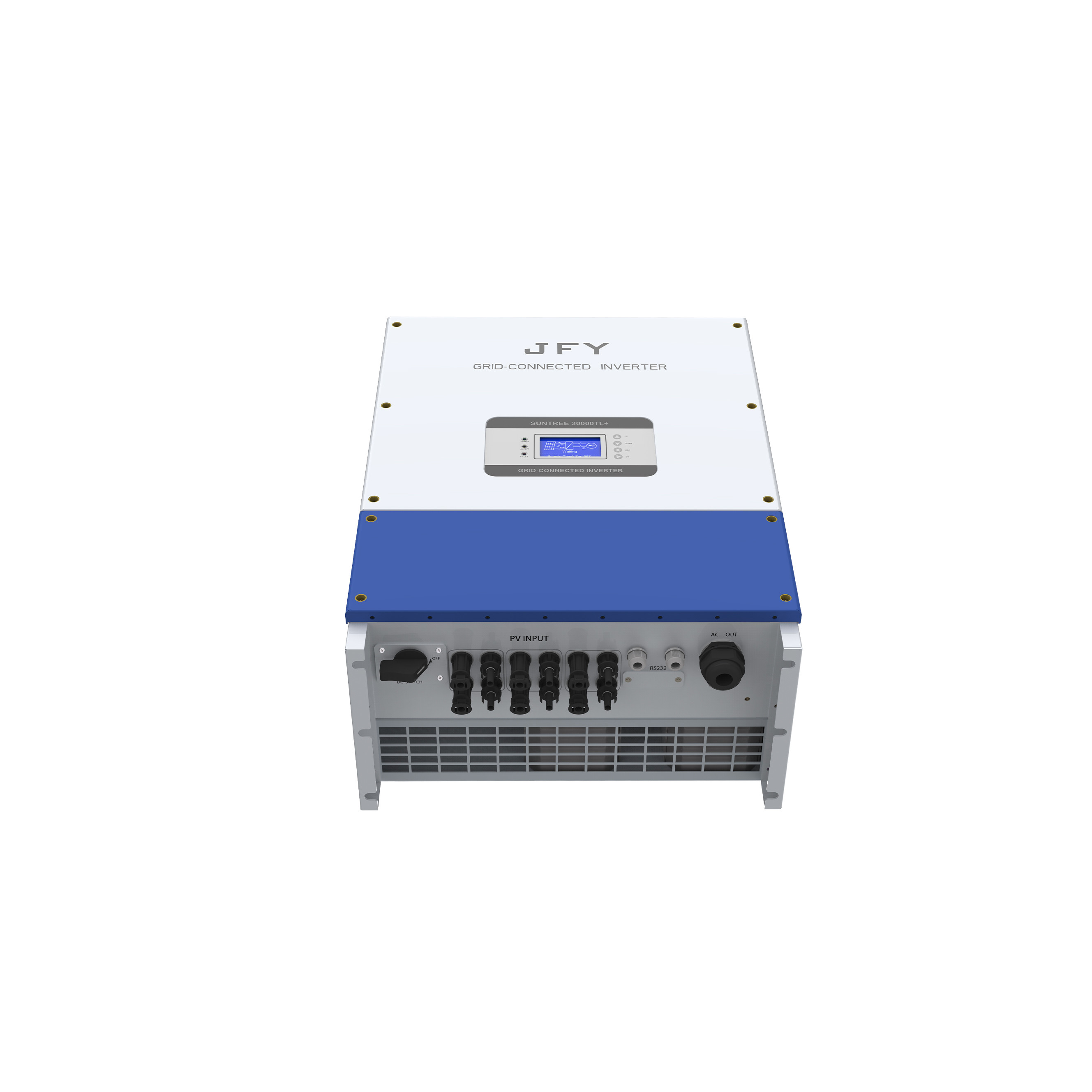

Three phase photovoltaic Grid-tie inverter With Suntree 30000TL
SUNTREE Series 30K-40KTL+
Three Phase String Inverter
Features
> Big LCD screen, multi-function buttons, easy operation
> Wide input voltage range: 250-1100Vdc
> Multiple MPPT design, maximum efficiency of 98.8%
> String level monitoring, efficient and quick fault diagnosis
> Diverse communication connection: RS232.RS485,WIFI, and GPRS
| Technical data | 30000TL+ | 33000TL+ | 40000TL+ |
| Input (DC Side) | |||
| Max. DC input power | 36000W | 36000W | 48000W |
| Max. DC voltage | 1100Vdc | ||
| Start voltage | 250Vdc | ||
| MPPT voltage range | 250~1000Vdc | ||
| Number of inputs | 6 | ||
| Number of MPPT | 3 | ||
| Max. input current | 3*30A | ||
| Output (AC Side) | |||
| Rated output power | 30000W | 33000W | 40000W |
| Max. output power | 36000VA | 36000VA | 45000VA |
| Rated output current | 45.5A | 50A | 60A |
| Max. output current | 50A | 55A | 66A |
| Rated output voltage | 400Vac | ||
| Output voltage range | 360~440Vac | ||
| Grid frequency range | 50/60HZ+5 | ||
| Power factor (cos φ) | 0.8 (leading)-0.8 (lagging) | ||
| THDI | <3% | ||
| Efficiency | |||
| Max. efficiency | 98.2% | ||
| Euro, efficiency | 97.6% | 97.7% | 98.0% |
| MPPT efficiency | 99.9% | ||
| Protections | |||
| Built-in protections | DC Reverse Polarity, Short Circuit, Output Over Current, Output Over Voltage, Insulation Resistance Monitoring,Residual Current Detection, Surge Protection, Anti-Island Protection, Over Temperature Protection | ||
| Lightning protection | DC Type ||/AC Type || | ||
| General Data | |||
| Operating temperature | -25~+60°C | ||
| Noise | ≤50dB (A) | ||
| Night power consumption | <2w | ||
| Electrical isolation | Transformerless | ||
| Cooling concept | Intelligent Fan cooling | ||
| Degree of protection | IP65 | ||
| Com munication :RS232/RS485/WiFi/4G | yes/opt/opt/opt | ||
| Dimension (W*D*H ) | 476*258*630mm | ||
| Weight | 42kg | ||
