Wall Mounted 3.5KW All In One Energy Storage System SunAura Hybrid Solar Inverter

10PCS
MOQ
USD
Price
Wall Mounted 3.5KW All In One Energy Storage System SunAura Hybrid Solar Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: All In One Energy Storage System
PV Input: 120-500Vdc
AC Output: 220Vac
Rated Output Power: 3500W
Battery Type: Lithium-ion
Battery Usable Energy: 5.12kwh
Highlight:

Wall Mounted All In One Energy Storage System

,

3.5KW All In One Energy Storage System

,

SunAura Hybrid Solar Inverter

Basic Infomation
Place of Origin: CHINA
Brand Name: JFY TECH
Certification: CE
Model Number: SunAura 3.5KS5
Payment & Shipping Terms
Packaging Details: carton box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C
Supply Ability: 300
Product Description

All in one energy storage system wall mounted 5.5KW




SunAura 5.5KS5/5.5KS10
Hybrid Solar inverter energy storage system


Performance characteristics

 Load friendly: Stable sine wave AC output via SPWM modulation

 Wider PV input voltage range: 120V~500Vdc

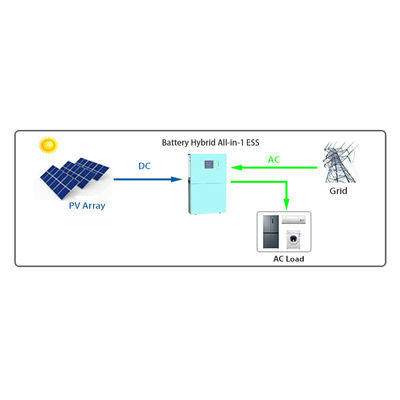

 Uninterrupted power supply: simultaneous connection to utility grid/generator and PV

 High energy efficiency: up to 99.9% MPPT capture efficiency

 Capable to Remote monitor inverter With wifi or 4G

 LiFePo4 prismatic atterycell, high safety Secured by
    integrated superior vehicle-level BMS

 Compact and light, quick installation and configuration
    Prefabricated and connectors for plug and play



MODEL SunAura 5.5KS5 SunAura 5.5KS10
  PV Array Data
  Max.PV Array Power 6000W
  Max.PV Array Open-Circuit Voltage 500V
  Start-up Voltage 120-450VDC
  MPPT Operating Voltage Range 100VDC
  Nominal Input Voltage 360VDC
  Max. Input Current MPPT 30A
  Max. Short Circuit Current MPPT 32A
  Battery Data
  Battery Type LFP (LiFePO4)
  Battery usable energy 5.12kwh 10.24kwh
  Nominal Battery Voltage(V) 51.2V
  Battery Voltage Range(V) 42.0 - 57.6 V
  AC Input
  Nominal Voltage 230VAC
  Voltage Range 170-275VAC
  Frequency 50/60Hz(Auto sensing)
  Max. Input Current 36A
  AC Output
  Nominal Voltage 220/230VAC±5%
  Output Voltage Waveform Pure Sine Wave
  Rated Output Power 5500VA/5500W
  Peak Output Power 8000VA
  Nominal Output Fregency 50/60Hz
  Transfer Time < 10ms
  Max. PV to AC Efficiency 96.5%
  Max. Battery to AC Efficiency 93.0%
  Protection
  PV Insulation Resistance Detection Yes
  Residual Current Monitoring Yes
  General Data
  Operating Temperature Range -10 -- +50℃
  Relative Humidity 0∽95%
  Max. Operating Altitude < 4000m
  Cooling Method Intelligent Fan cooling
  Display LED + LCD
  Communication with BMS RS485
  Communication with Cloud WiFi/4G
  Degree of Protection IP20
  Weight(kg) 56kg 87kg
  Dimension(W*H*Dmm) 450*720*150mm 560*885*150mm
  Mounting Method Floor or Wall Mounted
