51.2V LiFePo4 Energy Storage Battery Pack Compatible With Mainstream PCS

10
MOQ
USD
Price
51.2V LiFePo4 Energy Storage Battery Pack Compatible With Mainstream PCS
Features Gallery Product Description Request A Quote
Features
Specifications
Cell Technology: LFP (LiFePO4)
Operating Voltage: 42.0~57.6V
Batter Usable Energy: 5.12kwh
Communication: CAN/RS485/RS232
Cycle Life: 5000 Cycles @ 80% DOD/25°C/0.5C
Display: SOC Status Indicator, LED Indicator
Highlight:

RS485 Lifepo4 Energy Storage Battery

,

RS232 Lifepo4 Energy Storage Battery

,

51.2V Energy Storage Battery Pack

Basic Infomation
Place of Origin: CHINA
Brand Name: JFY TECH
Certification: UN38.3
Model Number: BPL 5.1
Payment & Shipping Terms
Packaging Details: carton box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 450
Product Description

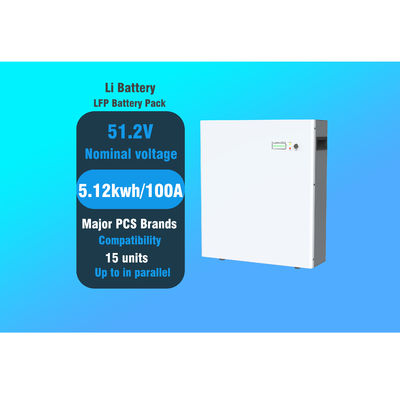

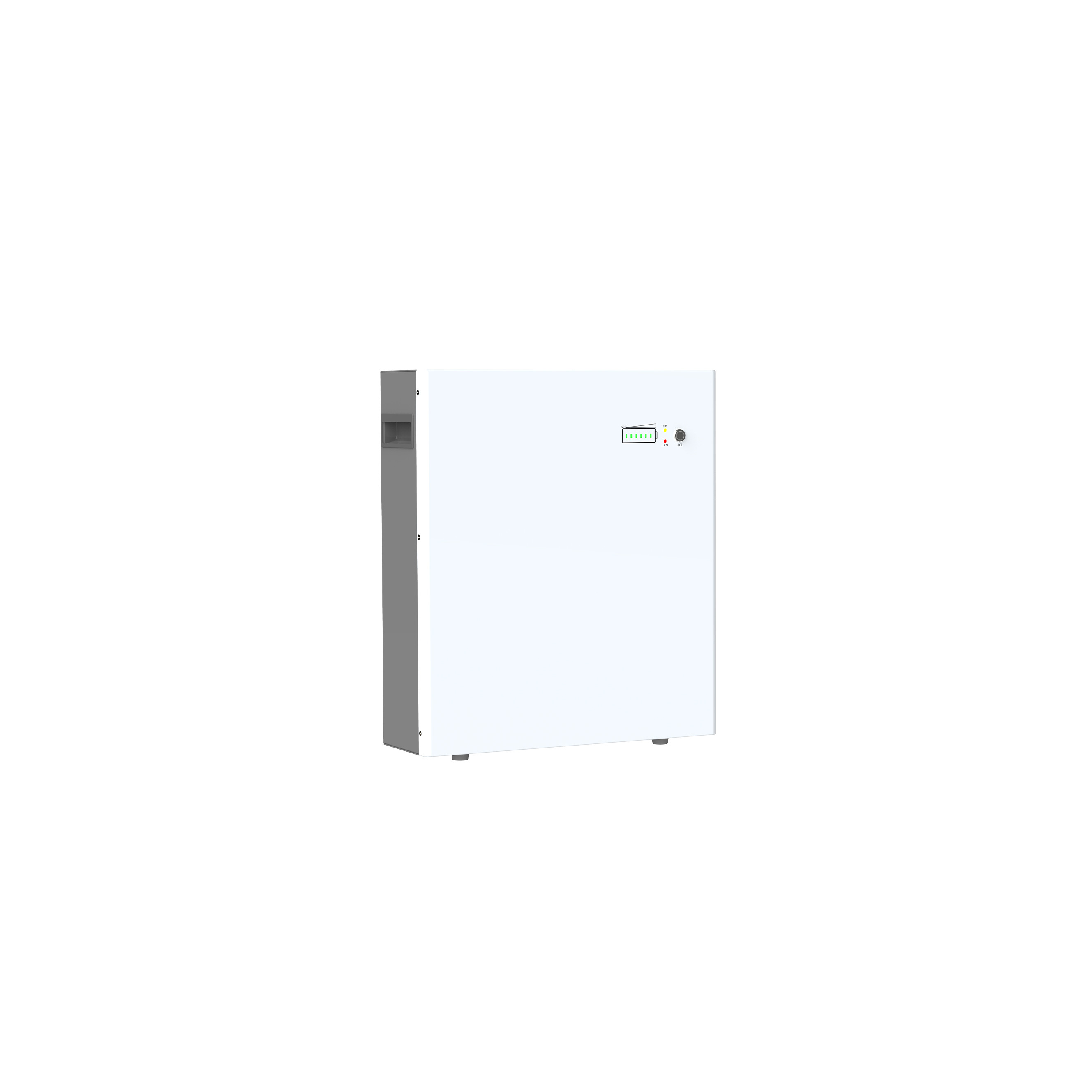

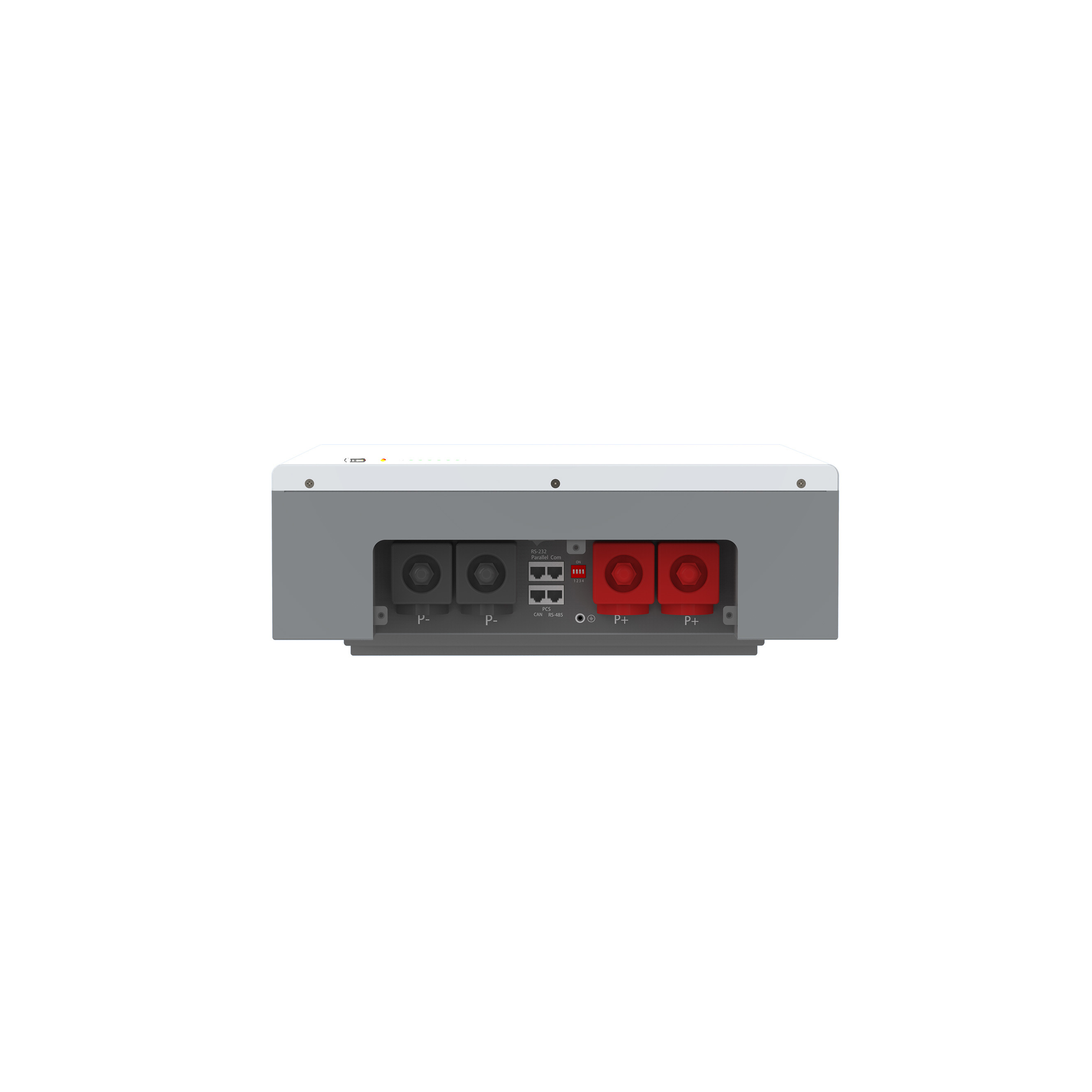

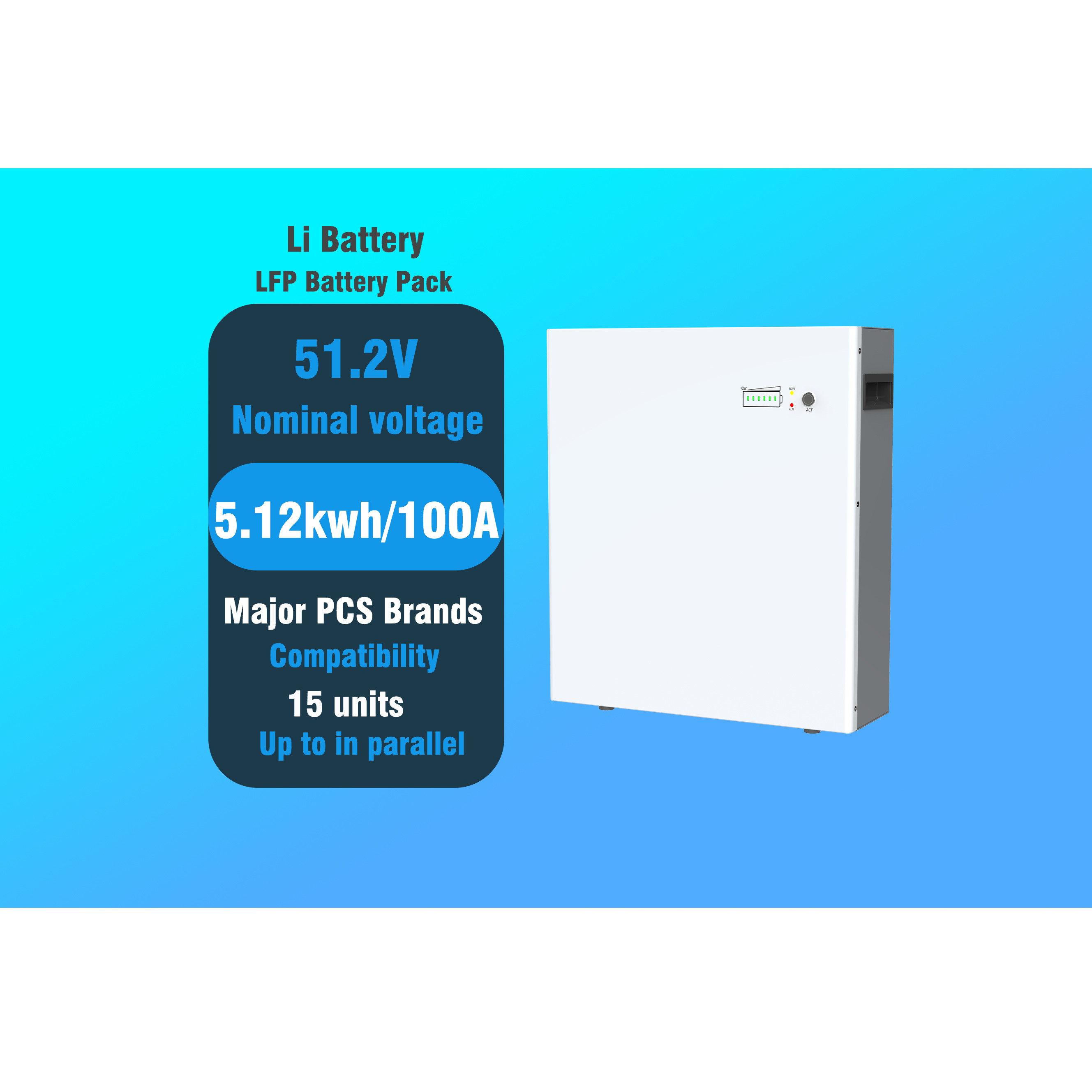

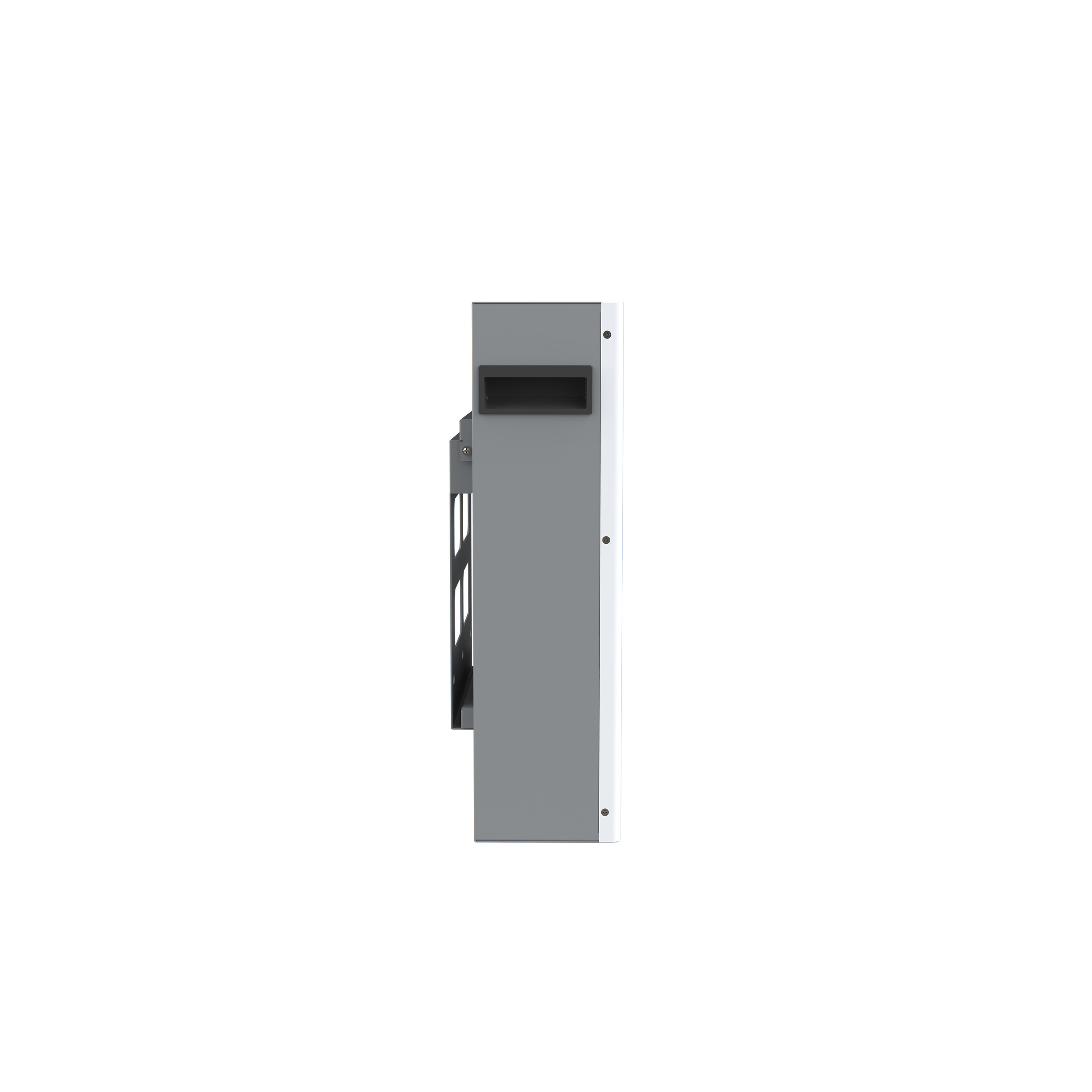

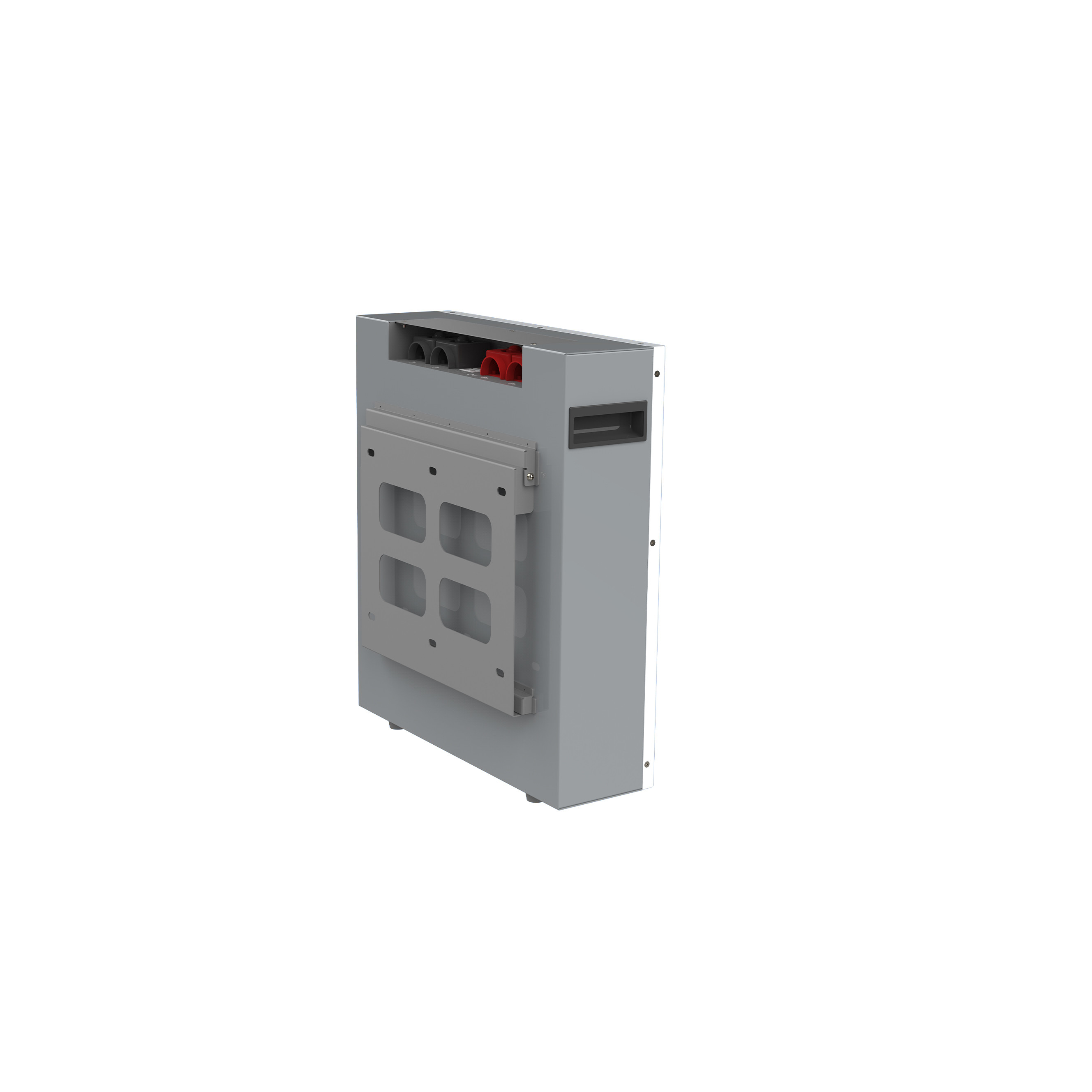

LiFePo4 Energy Storage Battery Pack With 51.2V







BPL Series 51.2V
LiFePo4 Energy Storage Battery Pack

Safety & Reliable
 LiFePo4 prismatic batterycell, high safety Secured by
    integrated superior vehicle-level BMS

Easy lnstallation
 Compact and light, quick installation and configuration,
    Prefabricated and connectors for plug and play

More Usable Energy
 100% Depth of Discharge

Flexible Investment
 Up to 15 units in parallel

Perfect Compatibility
 Compatibility with Major PCS Brands


Model BPL 5.1 BPL 10.2 BPL 15.3
  Perormance
  Cell technology LFP (LiFePO4)
  Batter usable energy 5.12 kWh 10.24 kWh 15.36kWh
  Nominal voltage 51.2 V
  Operating voltage 42.0 - 57.6 V
  Nominal output current 100 A / 50 A 200 A / 100 A 300 A / 150 A
  BMS protection current 110 A, 1 s 210 A, 1 s 310 A, 1 s
  Communication
  Display SOC status indicator, LED indicator
  Communication CAN / RS485 / RS232
  General Specifcation
  Dimension (W*D*H) 450×155×520 mm 450×155×863 mm 720×160×906 mm
  Weight 48 kg 92 kg 126 kg
  Installation Floor stand or Wall mounted
  Operating temperature -20 to 60 °C (-4 to 140 °F)
  Environmental humidity ≤ 95%RH (No condensation)
  Protection rating IP 21
  Cycle life 5000 Cycles @ 80% DOD / 25℃/0.5C
  Scalability Max 15 batteries in parallel
  Application ON Grid / ON Grid + Backup / Off Grid / UPS
  Standard Compliance
  Cerifcates Cell: UN38.3 / IEC62619 / UL 1642 / JET
Batter pack: UN38.3 / IEC62619 / IEC61000 / UKCA (More available upon request)
