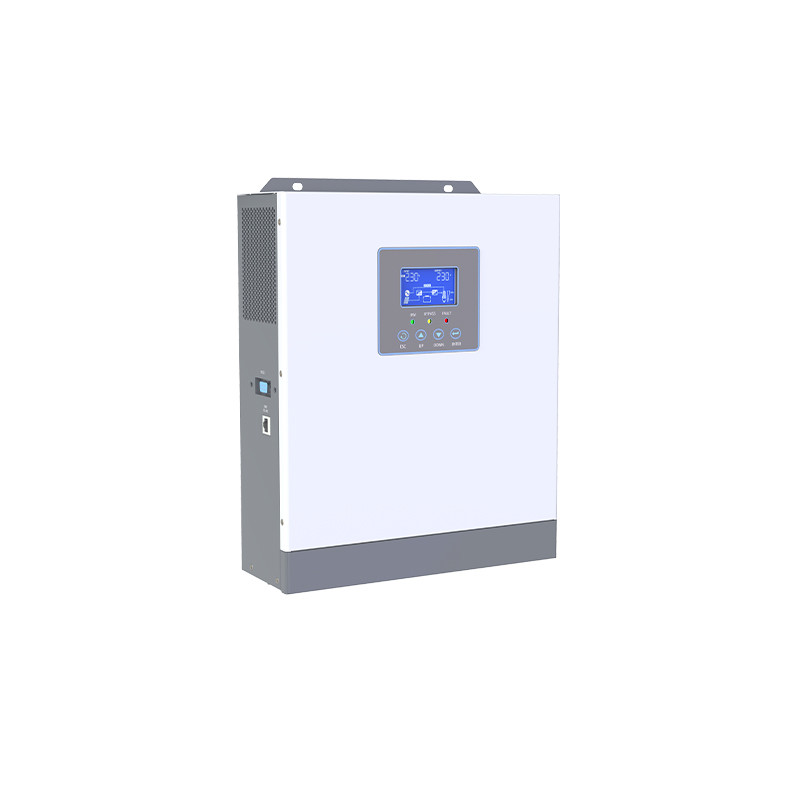

Hybrid Solar inverter with 100V-320V PV Input and 5KW 120Vac Output
| MODEL | iXCEED 3K48-120V | iXCEED 5K48-120V |
| PV Array | ||
| Max.PV Array Power | 3600W | 6000W |
| Max.PV Array Open-Circuit Voltage | 320VDC | |
| Start-up Voltage | 100VDC | |
| MPPT Operating Voltage Range | 120-300VDC | |
| Nominal Input Voltage | 250VDC | |
| Max. Input Current MPPT | 20A | 30A |
| Max. Short Circuit Current MPPT | 22A | 33A |
| Battery | ||
| Battery Type | lead-acid /Li-ion | |
| Nominal Battery Voltage | 48V | |
| Battery Voltage Range | 41-58V | |
| Max. AC Charging Current | 30A | 50A |
| Max. PV Charging Current | 60A | 100A |
| Max. PV Discharging Current | 60A | 100A |
| AC Input | ||
| Nominal Voltage | 120VAC | |
| Voltage Range | 90-150VAC | |
| Frequency | 50/60Hz(Auto sensing) | |
| Max. Input Current | 25A | 42A |
| AC Output | ||
| Nominal Voltage | 110/120VAC±5% | |
| Output Voltage Waveform | Pure Sine Wave | |
| Rated Output Power | 3000VA/3000W | 5000VA/5000W |
| PeakOutput Power | 3900VA | 6500VA |
| Nominal Output Fregency | 50/60Hz | |
| Transfer Time | <10ms | |
| Max. PV to ACEfficiency | 96.5% | 96.5% |
| Max. Battery to AC Efficiency | 93.0% | 93.0% |
| Protection | ||
| PV Insulation Resistance Detection | Yes | |
| Residual Current Monitoring | Yes | |
| General Data | ||
| Operating Temperature Range | -10 -- +50℃ | |
| Relative Humidity | 0∽95% | |
| Max. Operating Altitude | <4000m | |
| Cooling Method | Intelligent Fan cooling | |
| Display | LED+LCD | |
| Communication with BMS | RS485 | |
| Communication with Cloud | WiFi/4G | |
| Degree of Protection | IP20 | |
| Weight(kg) | 9 | 10 |
| Dimension(W*H*Dmm) | 373*300*105 | |
| Mounting Method | Wall Mounted | |
