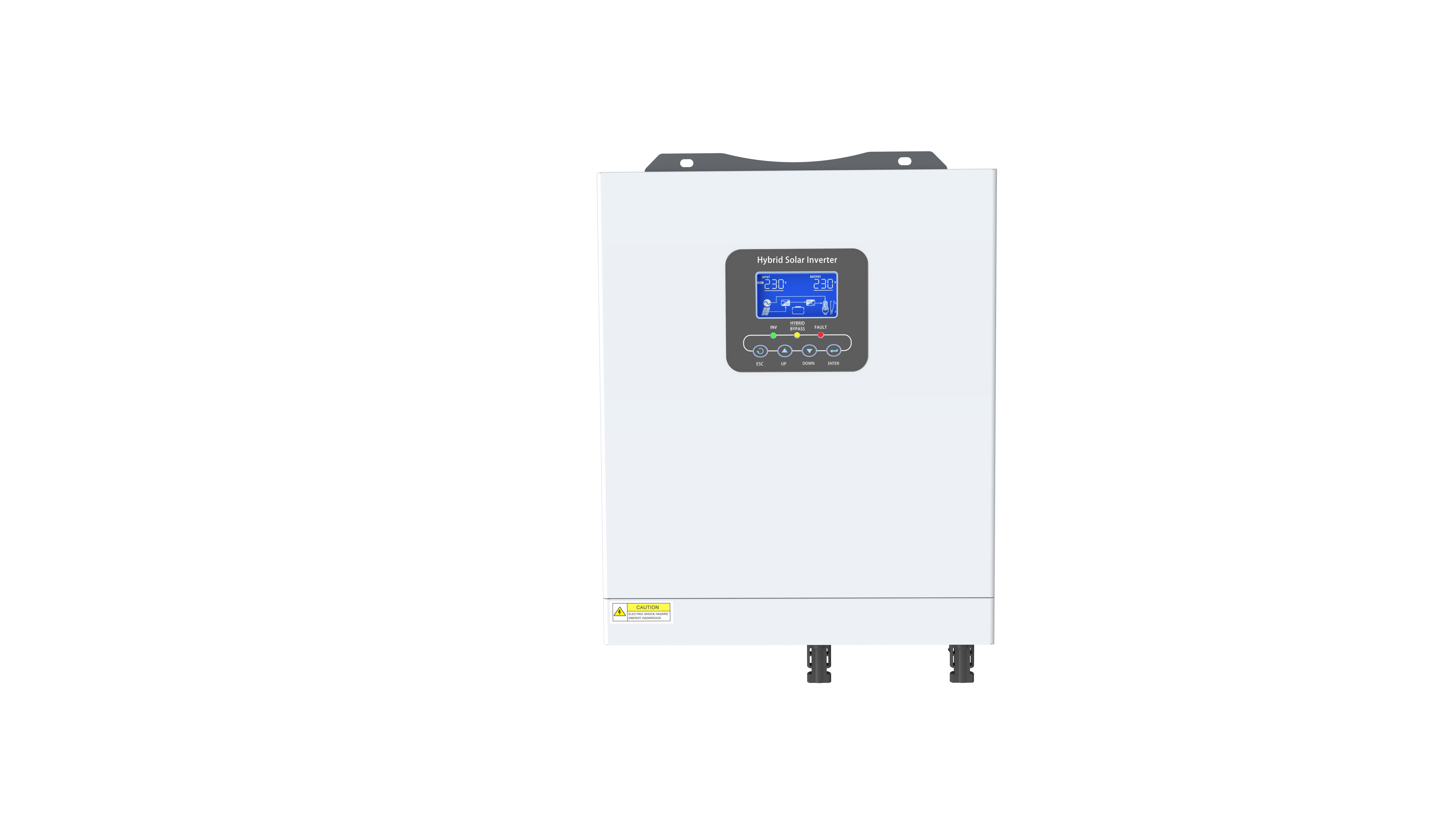

Hybrid Solar inverter with dual MPPTs and 8.2KW/10.2KW 230Vac Output
| MODEL | iXCEED 8.2K48-G2 | iXCEED 10.2K48-G2 |
| PV Array | ||
| Max.PV Array Power | 5400W+5400W | |
| Max.PV Array Open-Circuit Voltage | 500VDC | |
| Start-up Voltage | 100VDC | |
| MPPT Operating Voltage Range | 120-450VDC | |
| Nominal Input Voltage | 360VDC | |
| Max. Input Current MPPT | 18A*2 | |
| MPPT max Efficiency | 99% | |
| Battery | ||
| Battery Type | Li-ion /lead-acid | |
| Nominal Battery Voltage | 48V | |
| Battery Voltage Range | 41-58V | |
| Max. AC Charging Current | 50A | |
| Max. PV Charging Current | 140A | 160A |
| Max. Continuous Discharging Current | 160A | 200A |
| AC Input | ||
| Nominal Voltage | 230VAC | |
| Voltage Range | 170-275VAC | |
| Frequency | 50/60Hz (Auto following) | |
| Max. Input Current | 40A | 50A |
| AC Output | ||
| Nominal Voltage | 220/230VAC±5% | |
| Output Voltage Waveform | Pure Sine Wave | |
| Rated Output Power | 8200VA/8200W | 10200VA/10200W |
| PeakOutput Power | 11000VA | 14000VA |
| Nominal Output Fregency | 50/60Hz | |
| Transfer Time | 10ms | |
| Efficiency(peak) PV to INV | 97.0% | |
| Efficiency(peak) BAT to INV | 94.0% | |
| General Data | ||
| Operating Temperature Range | -10 -- +50℃ | |
| Relative Humidity | 0∽95% | |
| Max. Operating Altitude | <4000m | |
| Cooling Method | Intelligent Fan cooling | |
| Display | LED+LCD | |
| Communication with BMS | RS485 | |
| Communication with Cloud | WiFi/4G | |
| Degree of Protection | IP21 | |
| Weight(kg) | 13 | 14 |
| Dimension(W*H*Dmm) | 389*103*310 | |
| Mounting Method | Wall Mounted | |
